High Precision Dual-Layer Purlin Roll Forming Machine with 18 Forming Stations and 5.5Kw Motor

Name: High Precision DualLayer Purlin Roll Forming Machine with 18 Forming Stations and 55Kw Motor
Brand: METALIGN
Price: 1 USD

Cheap High Precision Dual-Layer Purlin Roll Forming Machine with 18 Forming Stations and 5.5Kw Motor wholesale

Brand Name : METALIGN

Model Number : CZP

Certification : CE,ISO,etc

Place of Origin : CHINA

MOQ : 1 set

Price : USD1,000-700,000. Based on customization.

Payment Terms : L/C,T/T

Supply Ability : 30 sets per month

Delivery Time : 30 days

Packaging Details : Industrial plastic film wrapping, secured with steel wire.

Product name : Dual-Layer Roll Forming Machine For Multi-Size C And Z Purlins With Hydraulic Cutting

Key words : C Purlin Roll Forming Machine / Z Purlin Roll Forming Machine / Multi-Size Purlin Machine

Profile : CZ Purlin

Application : Industrial Roofing / Warehouse Structure / Metal Building Frames

Material type : PPGI/PPGL/GI/GL Steel Coils

Material thickness : 1.5-3.0mm

Forming speed : 15-20m/min

Main motor power : 5.5Kw

Forming stations : 18

Driving system : Chain

Frame structure : Cast-iron

Shaft diameter : 70mm

Machine condition : Brand new

Shaft material : #45 steel quenched 55-60℃

Roller material : High grade #45 steel , surface with hard chrome

Display language : English/Spanish/Russian/French,etc, customizable

Control technique : PLC+Touch Screen

Delivery time : 30 days

Contact Now

1. Overview

1.1 Production Line
This roll forming production line targets metal building manufacturers, construction companies, and structural steel suppliers. It offers high efficiency, precision, and flexibility for producing multi-size C and Z purlins. The automated size change and dual-layer design improve productivity while minimizing downtime, serving demanding industrial and commercial roofing markets.

1.2 Profile
C and Z purlins produced by this line use galvanized or cold-rolled steel, thickness 1.5–3mm. Shapes include standard C and Z profiles with uniform flanges and web. Features high precision, smooth edges, and optional pre-punched holes. Applications include industrial roofing, steel frame buildings, warehouses, and agricultural structures, providing structural support and durability.
Material: Galvanized Steel / PPGI / Aluminum	Thickness:1.5-3.0mm
Yield strength: 200 - 350 Mpa	Tensil stress: 200 -350 Mpa

1.3 Production Process

Flow Chart:

Decoiler → Guide → Pre Punch → Roll Forming Machine → Hydraulic Cut → Out Table

Process:

The line unrolls steel coils, aligns material via guides, pre-punches holes for fast assembly, then forms profiles in a cast-iron stand roll former with chain drive. Hydraulic cutters precisely cut purlins to length. Dual-layer roll forming allows multi-size production efficiently, delivering high-precision C and Z purlins for structural and roofing applications.

1.4 Key Focus
Dual-layer design enables simultaneous production of different C and Z purlin sizes.
Cast-iron stand ensures high rigidity and long-term stability.
Chain-driven roll former provides smooth, precise forming at high speed.
Automatic size change reduces downtime, increases production efficiency.
Integrated pre-punching allows easy assembly and customizable profiles.

2. Technical Parameters

2.1 Decoiler
Structure	Double-support
Working Form	Manual, motorized, or hydraulic
Loading Capacity	5T/7T/10T, customizable
Coil Width	1250mm, customizable
Inner Diameter	Φ450 – Φ550 mm
Out Diameter	1500 mm
Model	DC-MU1

2.2 Optional Upgrade: Decoiler

Motorized Decoiler	Stand structure decoiler, motorized or hydraulic	Hydraulic decoiler with loading car

2.3 Guiding Device With Pre-Cut Broaching Shear
Guiding Roller	Adujust the coil feeding width
Pre-cut Broaching Shear	Cut the steel coil before roll forming
Digital Display	See the feeding width directly

2.4 Roll Forming Machine
Working Speed	Around 20 m/min
Structure	Wall panel type. Optional: Cast-iron stands or guide pillar
Driving System	Chain system. Optional: Gearbox
No. of Forming Stations	18 stands
Shaft Diameter	70mm solid shaft
Motor Power	5.5 Kw
Roller Material	45# steel polished and chromed HRC58-62°
Shaft Material	High grade 45# steel polished(CNC lathe)
Steel Coil Material	PPGI or GI
Steel Coil Thickness	0.25-0.8mm

2.5 Optional Upgrade: Cover

Mounted On The Inside: No Cover Required	Solid Cover For Chain	Mesh Safety Cover

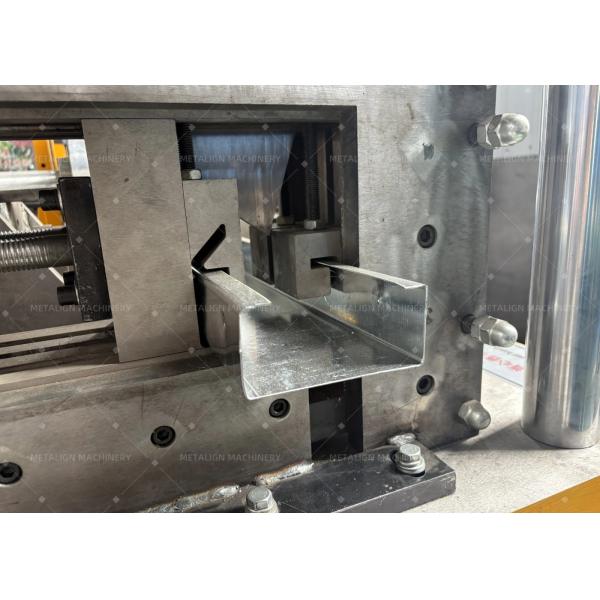

2.6 Cutter
Common Power Type	Hydraulic. Optional: motor type.
Hydraulic Power	4-5.5Kw, customizable
Blade Material	Cr12 Mov
Hardness	With quenched treatment HRC 58 – 62°

2.7 Product Collection
Solution 1	Run-out table	Solution 2	Auto stacker
Power Type	Non-powered, mainly manual handling	Power Type	Motorized, 3Kw
Dimension	Length 4m, customizable	Dimension	Length 4m-6m, customizable

2.8 PLC Control Cabinet
PLC Brand	Delta, customizable	Power Supply	380v, 50HZ, 3Phase (It depends on customer requirement)
Encoder Brand	Omron, customizable	Language	Chinese + English, Spanish, French, Russian, etc
Touch Screen	MCGS, customizable	Operation type	Manual /auto two-type switch
Hanging Arm Type	Saving Space	Standing Type	greater component integration and flexible positioning
Hanging-Arm Control Box		Standing Control Box

2.9 Hydraulic Power Unit (HPU)
Motor Power	5.5Kw
Oil Required	N32 or N46 hydraulic oil is available
Design	The hydraulic station has a fan cooling system
Optional	It can be installed on or inside the roll former to save space

2.10 Analysis
Decoiler	Unrolls steel coils, smooth feeding, reduces material tension
Guide	Aligns steel, ensures precise forming, prevents material deviation
Pre Punch	Prepares holes for assembly, improves efficiency, reduces post-processing
Roll Forming Machine	Cast-iron stand ensures stability, chain drive enables high-speed forming
Hydraulic Cut	Accurate length cutting, minimizes burrs, ensures profile consistency
Out Table	Collects finished purlins, reduces manual handling, supports automated workflow

3. Production Line Components

Component	Quantity
Hydraulic Decoiler	1 set
Punching Unit	1 set
Roll Former	1 set
Hydraulic Cutter	1 set
Out Table	2 sets
PLC Cabinet	1 set
Hydraulic Station	1 set

4. Customization Options

This production line allows customization of profile width, height, and flange size for both C and Z purlins. Pre-punch hole positions, pitch, and quantity can be adapted. Roll former settings, hydraulic cutting length, and dual-layer configuration can be tailored to produce multi-size purlins in a single line for diverse roofing and structural applications.
